DIN7993 Snap Rings

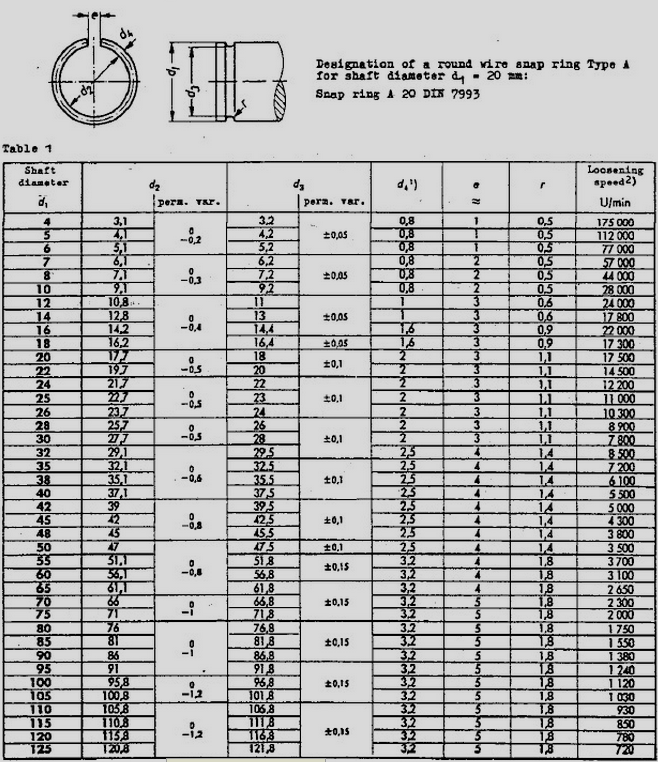

DIN7993 external snap rings are Axially fitted snap rings for shafts with semi-circular grooves. Manufactured in hardened round section wire. They are predominantly used in semicircular grooves in conjunction with quarter-circle coverage of the located mating component. Click for detailed specifications DIN7993-70.
