DIN 125A Flat Washers

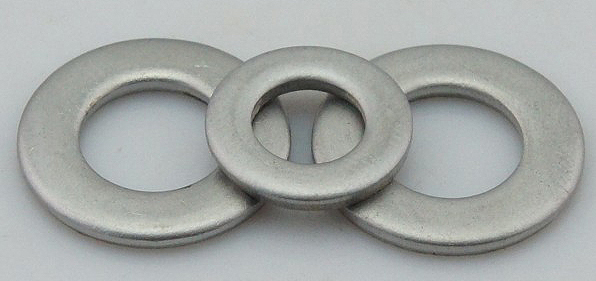

DIN125A flat washers are stamped from sheet metal, its have a smooth bearing surface and are used under the head of a bolt and / or a nut. Flat washers generally made of carbon steel, stainless steel (A2 and A4).
More optional and relative flat washers are ISO 7089 flat washer, DIN126 flat washer.
Transhow Company keep In-Stock sales on the regular sizes (below stated) for both AISI 304 A2, AISI 316 A4 stainless steel flat washers. In-Stock Sizes: M6, M8, M10, M12, M16, M20
Size |
d1 (Min-Max) |
d2 (Min-Max) |
s |
s (Min-Max) |
4 |
4.3-4.48 |
9-8.64 |
0.8 |
0.7-0.9 |
5 |
5.3-5.48 |
10-9.64 |
1 |
0.9-1.1 |
6 |
6.4-6.62 |
12-11.57 |
1.6 |
1.4-1.8 |
7 |
7.4-7.62 |
14-13.57 |
1.6 |
1.4-1.8 |
8 |
8.4-8.62 |
16-15.57 |
1.6 |
1.4-1.8 |
10 |
10.5-10.77 |
20-19.48 |
2 |
1.8-2.2 |
12 |
13-13.27 |
24-23.48 |
2.5 |
2.3-2.7 |
14 |
15-15.27 |
28-27.48 |
2.5 |
2.3-2.7 |
16 |
17-17.27 |
30-29.48 |
3 |
2.7-3.3 |
18 |
19-19.33 |
34-33.38 |
3 |
2.7-3.3 |
20 |
21-21.33 |
37-36.38 |
3 |
2.7-3.3 |
22 |
23-23.33 |
39-38.38 |
3 |
2.7-3.3 |
24 |
25-25.33 |
44-43.38 |
4 |
3.7-4.3 |
26 |
27-27.33 |
50-49.38 |
4 |
3.7-4.3 |
27 |
28-28.33 |
50-49.38 |
4 |
3.7-4.3 |
28 |
29-29.33 |
50-49.38 |
4 |
3.7-4.3 |
30 |
31-31.39 |
56-55.26 |
4 |
3.7-4.3 |
32 |
33-33.62 |
60-58.8 |
5 |
4.4-5.6 |
33 |
34-34.62 |
60-58.8 |
5 |
4.4-5.6 |
35 |
36-36.62 |
66-64.8 |
5 |
4.4-5.6 |
36 |
37-37.62 |
66-64.8 |
5 |
4.4-5.6 |
|
